Glass Lite Kits for Doors by National Guard Products
Have you ever been hit by a door because the person plowing through it didn’t know you were on the other side? Or have you ever hit someone you didn’t see when you pushed open a door? Avoid accidents and make sure your path is clear by installing National Guard Products (NGP) Glass Lite Kits in your doors!
A Lite is basically a window for your door. They allow you to see what’s on the other side before you open it. Lite Kits can help reduce injuries caused by someone opening a door too quickly and hitting an unsuspecting person. They can also prevent accidents and damage to materials. For example, when someone is carrying equipment, supplies, or other fragile items, and the door opens into them from the other side, it could cause their packages to fall to the floor, potentially damaging or destroying them. Lite Kits can also prevent injury to pets, such as dogs who tend to wait right outside a door for their owner. Lite Kits give you a clear view of any obstacles on the other side of a door, allowing you to push it open with confidence that you won’t cause damage or injury. Lite Kits also have the added advantage of allowing more light into a room.

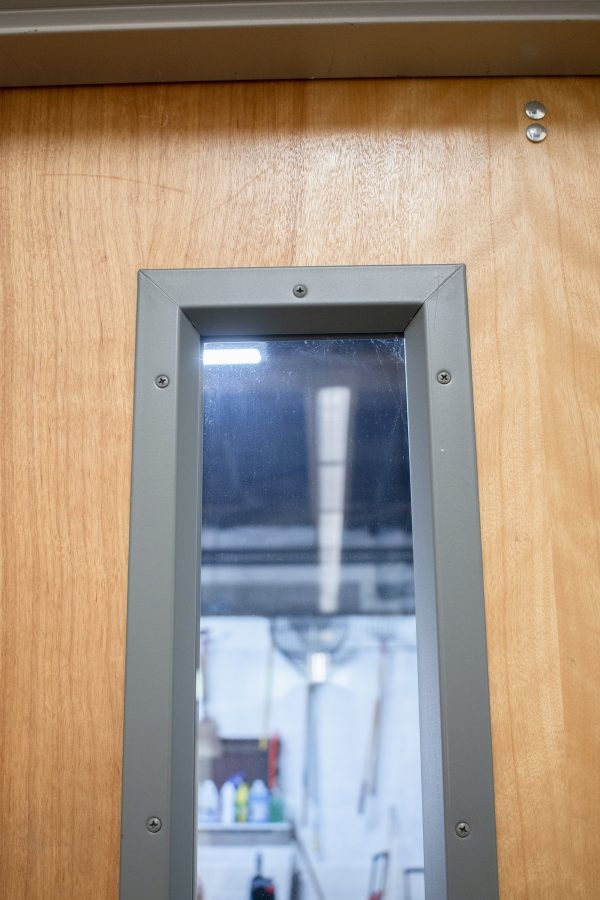

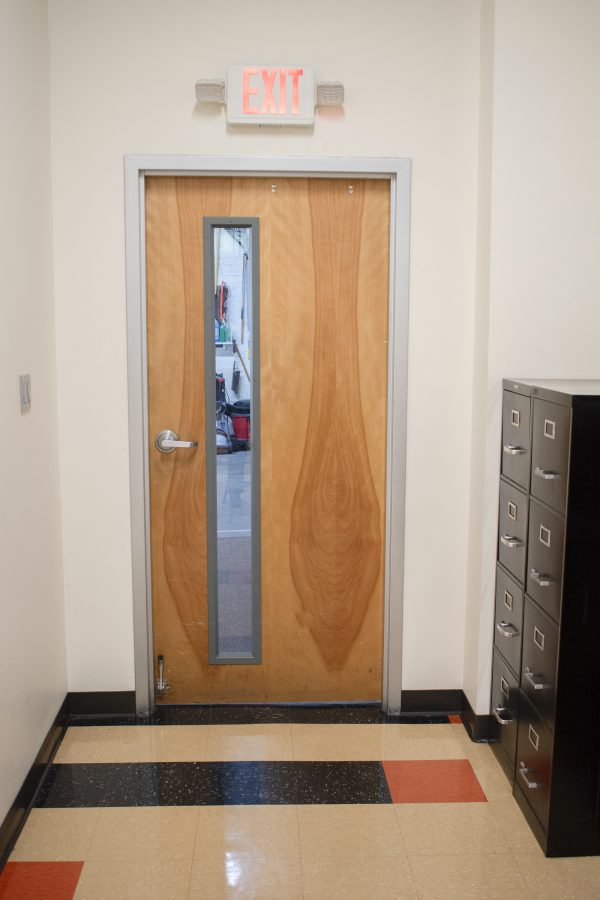

Shown in the photos above is the light kit we added to the door that leads into our office headquarters from the main warehouse.

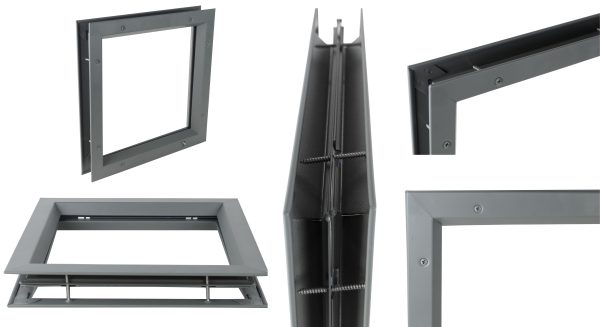

Lite Kit Features
NGP Lite Kits are made of high-quality materials, ensuring long-term durability and function. The kits we carry are manufactured with 18-gauge cold-rolled steel. They have mitered and welded corners, as well as welded reinforcing clips at the corners for added strength. The countersunk mounting screw holes use #8 x 1-3/4” Phillips head sheet metal screws.
These Lite Kits are made for multiple door sizes, including but not limited to the most popular door size of 1-3/4” thick doors. This means they can also be inserted into thinner and thicker doors as well. Lite kits are applicable to hollow metal or wood doors. You can can choose different powder coating color options for your kits, like the gray primer powder coat finish we went with for the door shown above.
National Guard Products Advantages
Several factors set NGP Lite Kits apart from their competitors. Their high-quality materials and quality control during manufacturing means their Lite Kits are built to last. The folded hems and straight miter joints provide an aesthetically pleasing look. They also pride themselves on quick lead and shipping times.
Types of Glass
If you’re ordering the glass for your Lite Kit from us as well, we have several options:
20 Minute Fire Protective Glass
- 1/4″ thick tempered fire-rated glass
- Superior optical clarity – clear and wireless
- Economical fire and safety rated glass
- Etched with fire and impact safety classification
- Weight: 3 lbs./sq. ft.
- STC 28 rating
- Impact Safety Rating Information:
- Meets ANSI Z97.1, Class A
- Meets CPSC 16CFR 1201 (Category I and II)
- Complies with IBC requirements for use in doors
Standards: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated 20 minutes.
Pyran® Platinum F Ceramic Fire Protective Safety Glass
- 3/16″ (5mm) thick glass ceramic
- Heavy duty 7 mil durable safety film
- Neutral coloration – clear and wireless
- Etched with UL classification on each piece
- STC 31 rating
- Impact Safety Rating Information:
- Meets ANSI Z97.1, Class A
- Meets CPSC 16CFR 1201 (Category I and II)
- Complies with IBC requirements for use in doors, side-lites, transom lites and borrowed lites
Fire-rating information: Certified by UL to ANSI/UL9, ANSI/UL10B, ANSI/UL10C, CAN/ULC-S104, ULC CAN4-S106 with closed cell PVC foam glazing tape like NGP L-GT-116, L-GT-118, or L-GT-132

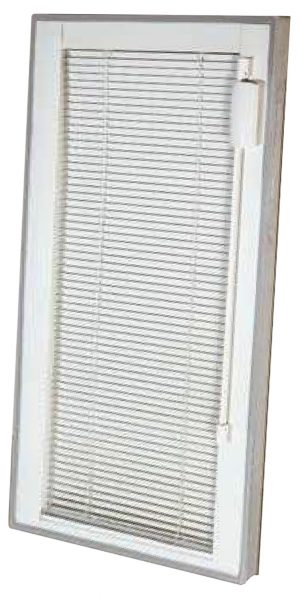

Glass With Integrated Mini Blinds
- Commercial grade hermetically sealed venetian blind system inside insulating glass unit – 1” thick
- Interior or exterior applications
- Clear tempered safety glass both sides
- Magnetic slider, placed on the right or left-hand side of the glass for tilting, lowering, and raising functions
- Minimum width 8-5/8″, maximum width 35-3/4″
- Minimum height 14″, maximum height 80″
- Standard blind color: white
Impact Safety Rating Information: Meets ANSI Z97.1, Class A Meets CPSC 16CFR 1201 (Category I and II,) Complies with IBC Requirements for Use in Doors

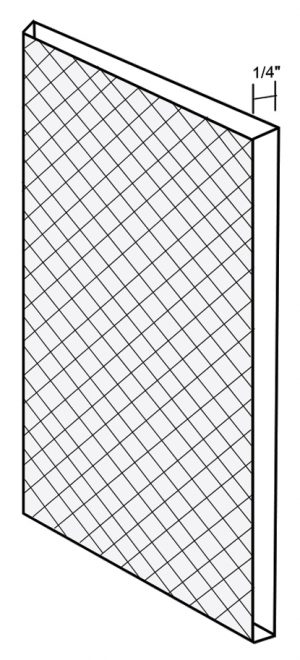

Safety-Wired Fire Protective Glass
- 1/4″ thick
- 3/4″ x 3/4″ Diamond pattern electrically welded steel wire mesh
- Heavy duty fire-rated and impact-safety rated film
- Maintains integrity when fractured or subjected to a hose stream
- Etched with UL classification on each piece
- Weight: 3.6 lbs./sq. ft.
- STC 28 rating
Impact Safety Rating Information: Meets ANSI Z97.1, Class A
Fire-rating information: Certified by UL to ANSI/UL 9, ANSI/UL10B, ANSI/UL10C, CAN/ULC-S104, ULC CAN4-S106 with closed cell PVC foam glazing tape like NGP L-GT-116, L-GT-118, L-GT-132 or L-GT-316
Where to Buy National Guard Products
Give us a call to learn more about National Guard Products Lite Kits, or to place an order. If ordering, you’ll need to know the size of the cutout that you want in your door. Also, please let us know the thickness and material of your door. If you’re buying the glass from us as well, we’ll take it from there. If you’re supplying your own glass, we’ll help you calculate the size you’ll need to have your glass cut to in order for it to fit properly into the kit.
