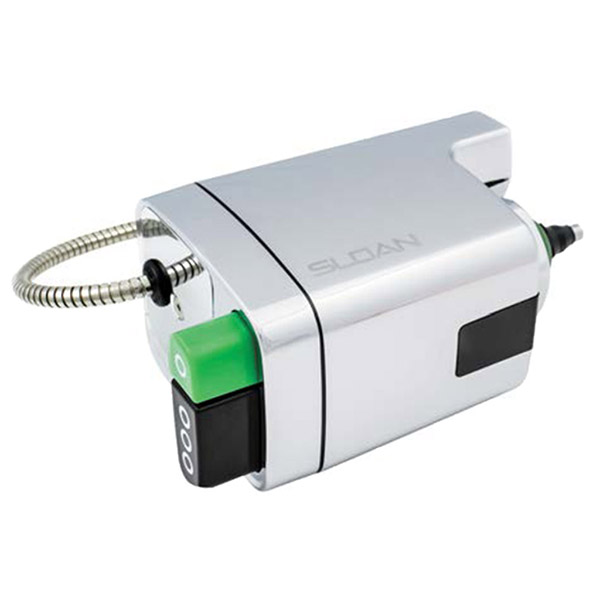

SLOAN EL750A FLUSH VALVE SIDEMT – DUAL 1.6/1.0 HARD WIRED

This dual flush sensor activated side mount retrofit kit is from Sloan. It can turn your existing manual flushometer into a hands-free, sensor operated flushometer. This unit is hardwired. It has a top spud fixture connection. It has a polished chrome finish. Easy-to-use manual override buttons allow a “courtesy flush" for individual user comfort. The small green button controls the reduced flush cycle (1.1 GPF) for liquid waste. The large black button controls the full flush cycle (1.6 GPF) for solid waste. Sloan model number EL750A-1.6/1.1-HW, code number 3345101.

Features:
• Non-Hold-Open true mechanical override full flush button
• User-friendly three (3) second flush delay
• If the user is present less than one minute and leaves, the sensing zone chooses the small GREEN override button, a reduced flush initiates (1.1 gpf/4.2 Lpf) eliminating liquid and paper waste, saving 1/2 gallon of water
• If the user is present greater than one minute and leaves, the sensing zone chooses the large BLACK override button, the full flush initiates (1.6 gpf) eliminating solid waste and paper
• “User in View" flashing LED
• No external volume adjustment to ensure water conservation
• Can be used on standard rough-in Sloan, Royal and Regal flushometers

EC Part Number: #87853
Manufacturer Number: 3345101
Manufacturer: Sloan Valve Co
